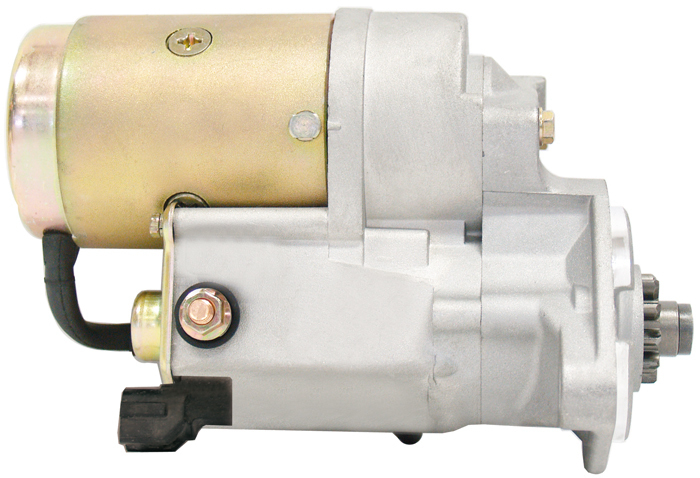

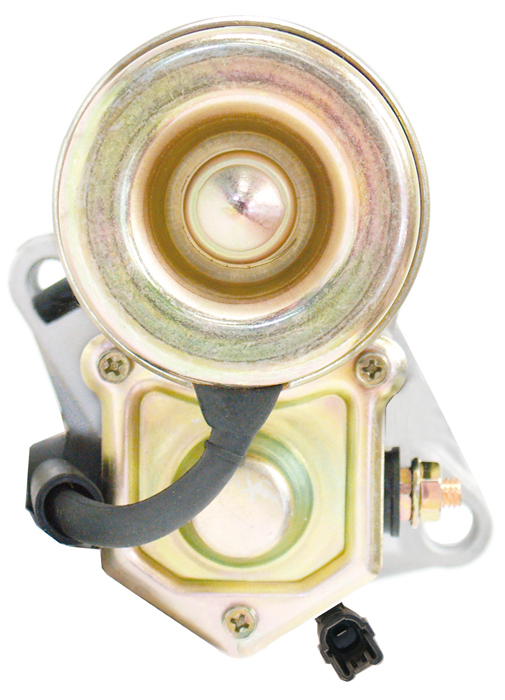

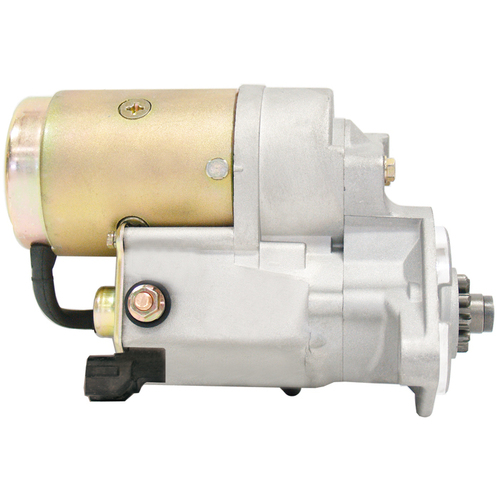

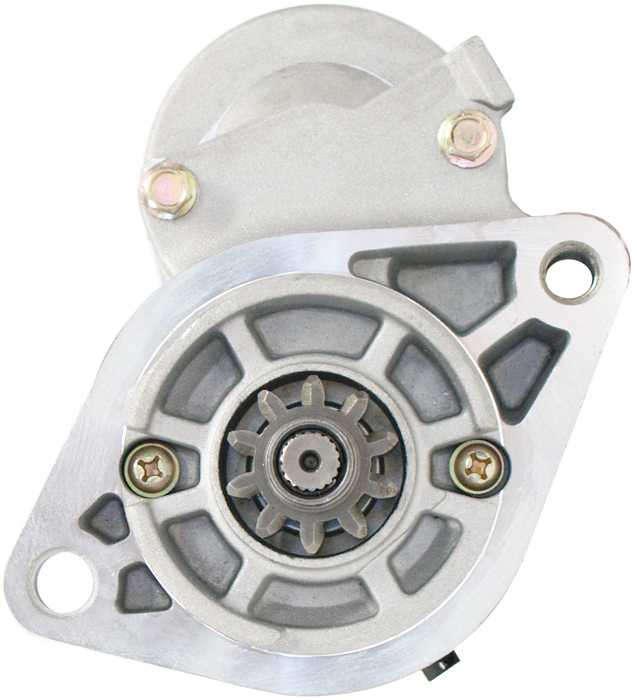

Denso Starter Motor 12V 2.2KW 10TH CW
Applications: Toyota HiAce, Hilux, Prado Diesel
Engine: 1KD-FTV, 1KZTE

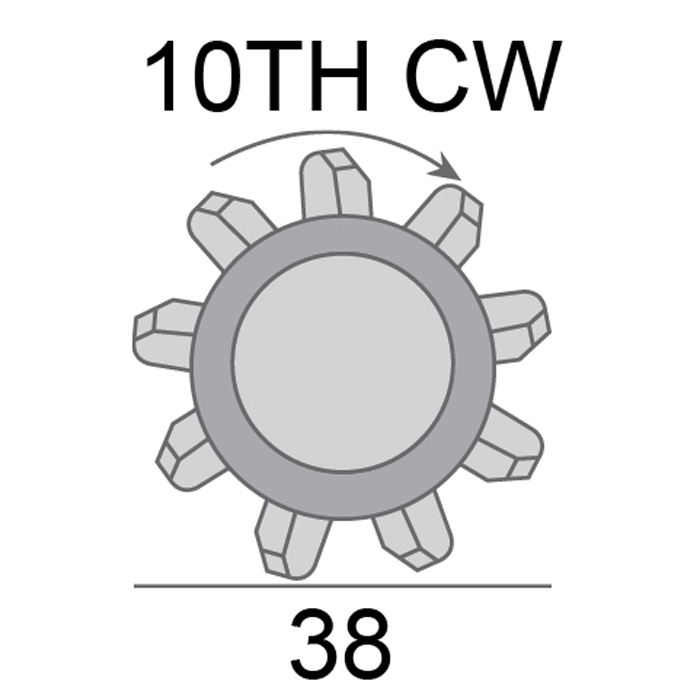

Overall Length Mounting Hole Dia Mt Holes Cnt to Cnt Flange Dia Nose Cone Length Pinion at Rest Field Hsg. Dia Teeth Dia
240 M12x1.5/13 127 82 31 18 85 38

MAKE MODEL SUB MODEL YEAR ENGINE LITRES FUEL
TOYOTA HIACE KDH200R, KDH220RTURBO 2005-06 2KDFTV 2.5 DIESEL
TOYOTA HIACE KDH222RCOMUTER BUSTURBO 2005-06 2KDFTV 2.5 DIESEL
TOYOTA HIACE KDH223RCOMUTER BUSTURBO 2006-14 1KDFTV 3.0 DIESEL
TOYOTA HIACE KDH201R, KHD221RTURBO 2006-14 1KDFTV 3.0 DIESEL
TOYOTA HILUX YN130R, YN185R 1993-00 1KZTE 3.0 DIESEL
TOYOTA HILUX KZN165R 1999-05 1KZTE 3.0 DIESEL
TOYOTA HILUX KUN16R, KUN26R 2005-14 1KDFTV 3.0 DIESEL
TOYOTA HILUX KUN16R, KUN26R (HIGH OUTPUT UNIT) 2005-14 1KDFTV 3.0 DIESEL
TOYOTA LANDCRUISER PRADO KZJ95R 1996-03 1KZTE 3.0 DIESEL
TOYOTA LANDCRUISER PRADO KZJ120R 2003-07 1KZTE 3.0 DIESEL
TOYOTA LANDCRUISER PRADO KDJ120R 2006-09 1KDFTV 3.0 DIESEL
TOYOTA LANDCRUISER PRADO KDJ150R , KDJ155R 2009-14 1KDFTV 3.0 DIESEL

WARRANTY

All Alternators and Starter Motors supplied by Car Parts Express are warranted to be free of defects in materials and workmanship for the following periods (see table).

The warranty period commences from the date of purchase.



PASSENGER VEHICLE (PMV): 36 Months / 40,000km

COMMERCIAL AND RECREATIONAL VEHICLE (CV): PMV 24 Months / 40,000km


PMV - Refers to Passenger Motor Vehicles Only

CV - Refers to Light Commercial and Heavy Commercial Diesel applications

Conditions

All claims for warranty must be made within the relevant warranty period, by returning the products to Car Parts Express at the purchases expense. With completed warranty claim form or proof of purchase.

The warranty does not apply to failure or damage to the unit caused by incorrect or faulty fittment, contamination by foreign materials or modification carried out by anyone other than Car Parts Express.

Car Parts Express pursuant to this warranty shall be limited to Car Parts Express in it's discretion by either repairing or replacing the defective unit or providing a credit or refund of it's original invoice price. In no case shall this include any consequential or other costs of removal and refitting any unit.

SKU 23191025011
Shipping Weight 5.0000kg
